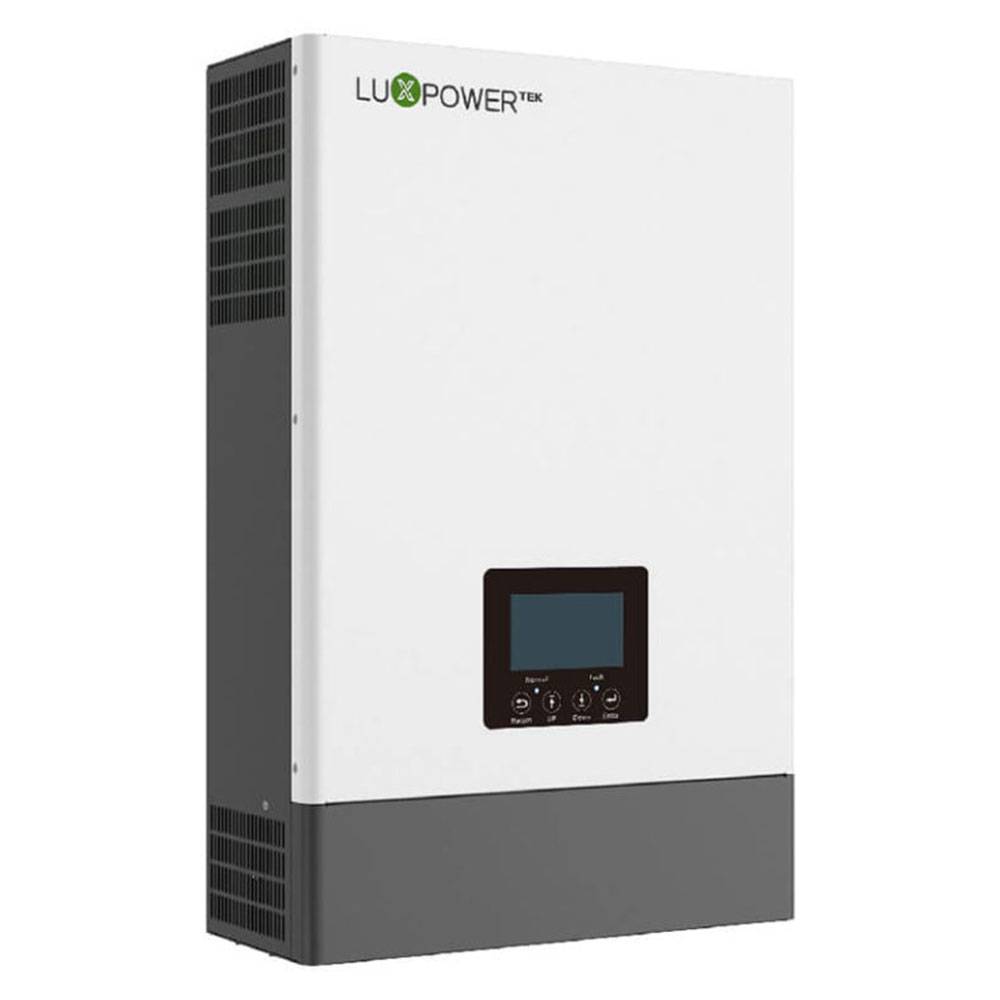

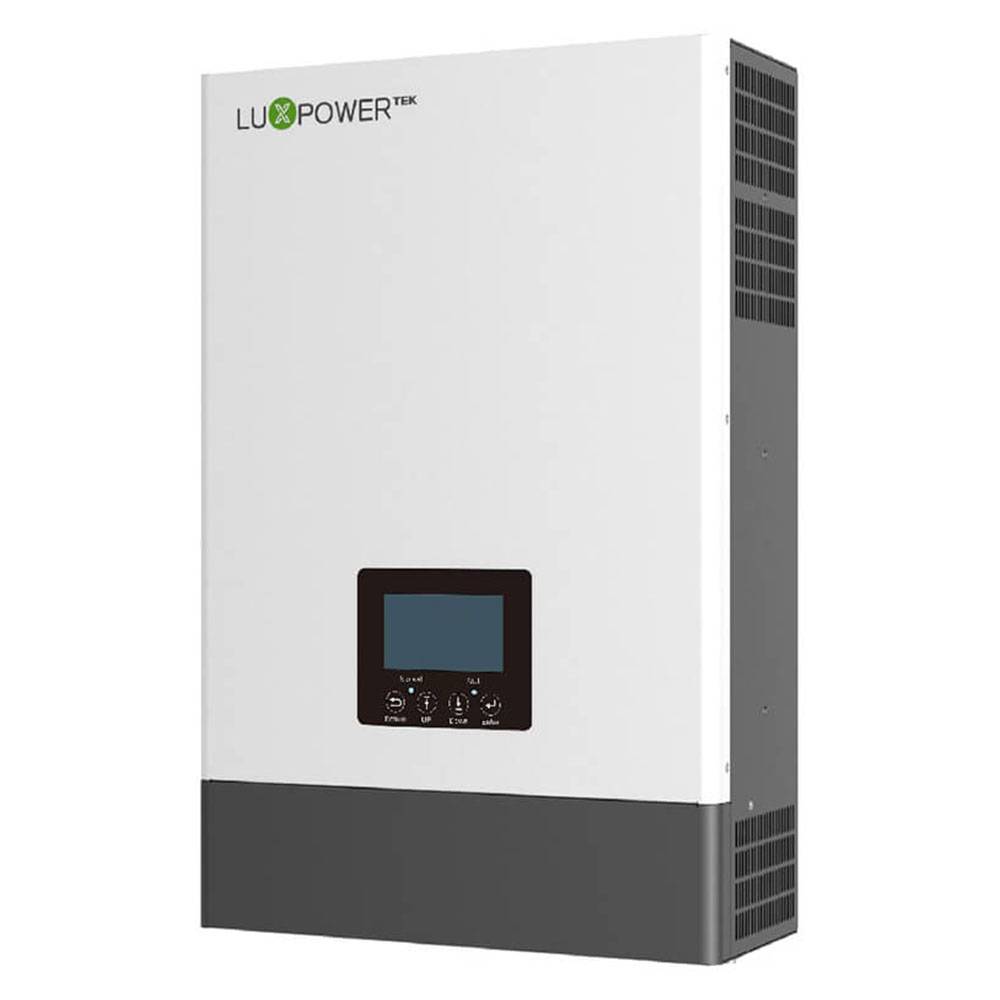

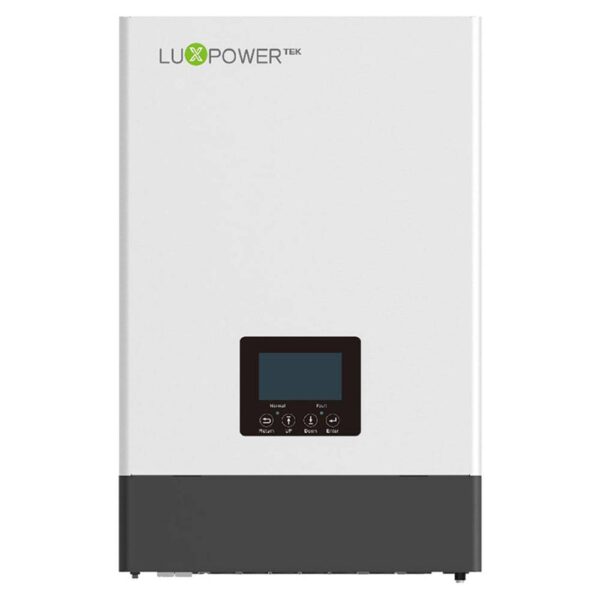

The Lux Power 5kW Off-Grid Inverter SNA5000WPV is a versatile and powerful inverter designed for off-grid, backup, and hybrid solar power systems. Featuring two high-voltage MPPT solar charge controllers, it supports up to 3200W PV input with a wide MPPT voltage range of 120V-430V, allowing efficient solar energy harvesting. The inverter delivers a continuous 5000W pure sine wave output with surge capacity of 10,000VA, supporting both lithium and lead-acid batteries. It includes parallel capability for up to 9 units, enabling scalable power capacity up to 50kW. With intelligent off-grid and hybrid modes and the ability to remotely monitor and upgrade firmware via WiFi/GPRS and mobile app, the Lux Power inverter ensures efficient, reliable, and user-friendly solar power management.
Key Specifications:
-
Rated Power: 5000W (5000VA)
-
Surge Power: 10,000VA
-
MPPT Solar Charge Controllers: 2
-
Max PV Input Power: 3200W
-
MPPT Voltage Range: 120V – 430V
-
Battery Types Supported: Lithium and Lead-Acid
-
Battery Voltage: 48VDC / 51.2VDC
-
AC Output Voltage: 230V (single phase)
-
Frequency: 50/60Hz (auto sensing)
-
Parallel Capability: Up to 9 units (scalable to 50kW)
-
Efficiency (Peak): 93%
-
Switching Time: 10 ms
-
Waveform: Pure sine wave
-
Communication: WiFi/GPRS, CAN, RS485, mobile app monitoring
-
Operating Temperature: 0°C to 50°C
-
Dimensions (W x H x D): 330 x 504 x 135 mm
-
Weight: ~14 kg
-
Protection Level: IP20
This inverter is ideal for those seeking a robust off-grid or hybrid solar solution that combines high efficiency, scalability, and smart monitoring features.
